Flexible Construction
More flexibility for project-specific panel configurations.
Hand-Made Cleanroom Panels
Flexible cleanroom sandwich panels for customized wall, ceiling and partition applications.
Multiple core configurations, flexible panel dimensions and project-specific construction options for demanding cleanroom environments.
What Are Hand-Made
Cleanroom Panels?
Hand-made cleanroom panels are composite sandwich panels assembled through manual production processes, allowing greater flexibility in panel construction, dimensions and selected project-specific configurations.
Custom Dimensions
Panel widths and lengths can be adjusted according to project requirements.
Multiple Joint Options
Available configurations include tongue-and-groove and aluminum center-joint systems.
Embedded Services
Selected panel constructions can accommodate pre-embedded pipelines or service requirements.
Why Choose Hand-Made Panels?
01 Project-Specific Dimensions
Non-standard panel widths can be produced according to project requirements.
02 Flexible Joint Configurations
Different edge and joint configurations are available for selected applications.
03 More Flexible Internal Construction
The hand-made process allows selected core and reinforcement configurations to be adapted to project requirements.
04 Service Integration
Selected panel configurations can accommodate pre-embedded pipelines and other project-specific requirements.
When Is Hand-Made The Right Choice?
If your project mainly requires standardized panel dimensions and scalable production, Machine-Made Panels may be the more efficient choice.
Customized Dimensions
Projects requiring non-standard panel widths or dimensions.
Complex Panel Configurations
Projects requiring specific edge, reinforcement or internal construction.
Embedded Services
Projects where selected services or pipelines need to be integrated into the panel construction.
Project-Specific Requirements
Projects requiring more flexibility than standardized machine-made panel configurations can provide.
Hand-Made Panel Options

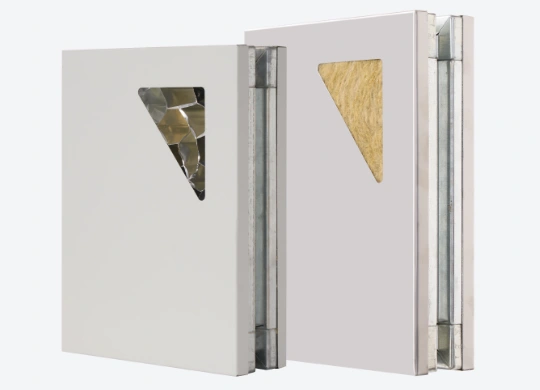

Hand-Made Rock Wool Cleanroom Panel
| Core | Hydrophobic Rock Wool |
|---|---|
| Standard Thickness | 50 / 75 / 100 mm |
| Standard Width | 980 / 1180 mm |
| Length | 1000–6000 mm (Custom lengths available) |
| Joint Options | Aluminum Center Joint / Tongue-and-Groove |
| Documented Performance |
Fire Rating: A
Fire Resistance: ≥0.5 h Sound Insulation: 25 dB Bending Load: 1.1 kN/m² |
Hand-Made Rock Wool Cleanroom Panel
| Core | Hydrophobic Rock Wool |
|---|---|
| Standard Thickness | 50 / 75 / 100 mm |
| Standard Width | 980 / 1180 mm |
| Length | 1000–6000 mm (Custom lengths available) |
| Joint Options | Aluminum Center Joint / Tongue-and-Groove |
| Documented Performance |
Fire Rating: A
Fire Resistance: ≥0.5 h Sound Insulation: 25 dB Bending Load: 1.1 kN/m² |

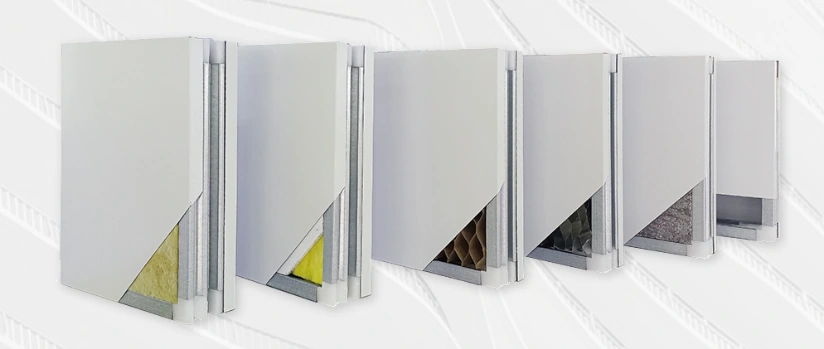

ADDITIONAL CORE OPTIONS
Additional core materials may be available for specific project requirements. Availability and technical suitability depend on the required panel configuration.

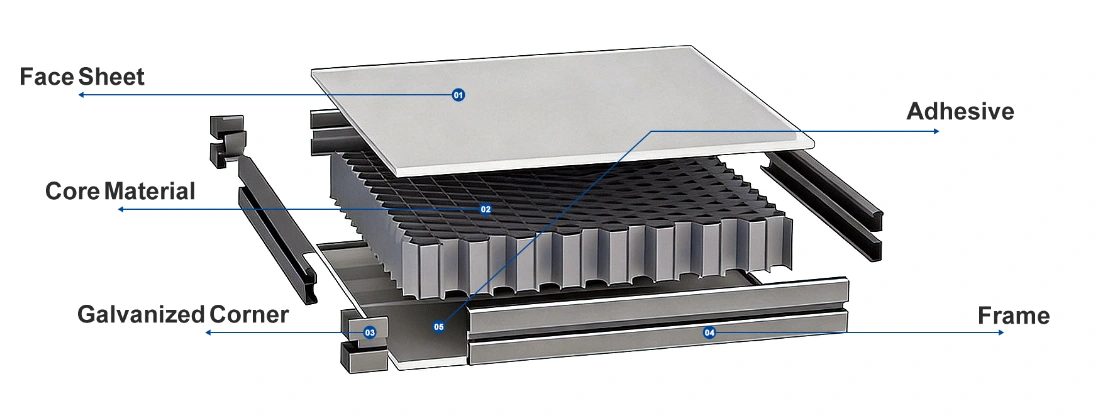

Flexible Panel Construction
Explore BFTPANEL Metal Siding
Flexible Joint Configurations
Tongue-and-Groove
For standard and clean
panel connections
Aluminum Center Joint
For specific project and
installation requirements.
Applications
Pharmaceutical
Cleanrooms
- Sterile production
- GMP environments
- Controlled process areas
Food Processing
Facilities
- Hygienic production
- Washdown areas
- Temperature control
Laboratories
- Research
- Testing
- Biotechnology
Medical & Healthcare
Facilities
- Patient care areas
- Treatment rooms
- Clinical facilities
Hand-Made or Machine-Made?
Choose the manufacturing method according to your panel configuration, project requirements and production needs.
| Consideration | Hand-Made Panels | Machine-Made Panels |
|---|---|---|
| Production Method | Manual composite production | Standardized machine production |
| Customization | Higher flexibility | Standardized configurations |
| Width | 980 / 1180 mm + custom | 950 / 1150 mm |
| Thickness | Commonly 50 / 75 / 100 mm | Core-dependent |
| Length | 1000–6000 mm + custom | Project-specific |
| Joint Options | Tongue-and-Groove / Aluminum Center Joint | Tongue-and-Groove |
| Core Options | Multiple project-specific options | Defined machine-made core range |
| Best Fit | Customized configurations | Scalable / standardized supply |
Define Your Panel Requirements
-
01
Application
Food / Pharmaceutical / Electronics / Laboratory / Other
-
02
Panel Core
Rock Wool / MgO + Rock Wool / Gypsum + Rock Wool / Aluminum Honeycomb / Other
-
03
Panel Dimensions
Width / Thickness / Length
-
04
Joint Configuration
Tongue-and-Groove / Aluminum Center Joint
-
05
Special Requirements
Embedded Services / Reinforcement / Non-Standard Dimensions
-
06
Project Quantity
Estimated Quantity / Container Requirement
Define Your Panel Requirements
Standard Reference Dimensions
| Item | Hand-Made Panels |
|---|---|
| Standard Width | 980 / 1180 mm |
| Common Thickness | 50 / 75 / 100 mm |
| Standard Length | 1000–6000 mm |
| Custom Width | Available by requirement |
| Custom Length | Available by requirement |
| Joint Options | Tongue-and-Groove / Aluminum Center Joint |
Technical Performance
| Panel Type |
Fire
Rating |
Fire
Resistance |
Sound
Insulation |
Bending
Load |
|---|---|---|---|---|
| Rock Wool | A | ≥0.5 h | 25 dB | 1.1 kN/m² |
| Glass Mg + Rock Wool | A | ≥1.0 h | 30 dB | 1.15 kN/m² |
| Gypsum + Rock Wool | A | ≥1.0 h | 30 dB | 1.15 kN/m² |
| Aluminum Honeycomb | — | 41 min | 18 dB | 1.0 kN/m² |
Global Projects
Explore selected modular building, exterior renovation and cleanroom projects supplied for customers across global markets.
Hand-Made Cleanroom Panel FAQ
1. What are hand-made cleanroom panels?
Composite sandwich panels assembled through manual production processes, allowing flexibility in construction, dimensions and project-specific configurations.
2. How are hand-made panels different from machine-made panels?
Hand-made panels offer more flexibility in dimensions, core and reinforcement configurations. Machine-made panels use standardized production for scalable supply. See the comparison table above.
3. Can the panel width be customized?
Yes. Non-standard widths can be produced according to project requirements. Contact the technical team to review your dimensions.
4. What standard widths are available?
The standard hand-made panel widths shown are 980 mm and 1180 mm.
5. What thicknesses are available?
Common thicknesses are 50 mm, 75 mm and 100 mm. The final selection depends on the panel configuration.
6. Can the panel length be customized?
Standard lengths range from 1000 to 6000 mm. Custom lengths are available by requirement.
7. What joint options are available?
Tongue-and-groove and aluminum center-joint configurations are available for selected applications.
8. Can pipelines be embedded inside the panels?
Selected constructions can accommodate pre-embedded pipelines or services. The configuration should be reviewed for your specific project.
9. Which core materials are available?
The options shown include Rock Wool, Glass Magnesium + Rock Wool, Gypsum + Rock Wool and Aluminum Honeycomb. Other cores may be available for specific requirements.
10. Are hand-made panels suitable for pharmaceutical or GMP projects?
Pharmaceutical cleanrooms are an illustrated application. Suitability for a particular GMP project requires review of its requirements, selected panel construction and relevant technical documentation.
11. Can BFTPANEL provide custom configurations?
Project-specific dimensions, joint, core and reinforcement options can be reviewed. Share your application, dimensions, preferred core and quantity with the technical team.
Explore BFTPANEL Cleanroom Systems
Machine-Made Panels
Standardized production for scalable panel supply.
ExploreHand-Made Panels
Flexible configurations for project-specific requirements.
ExploreCleanroom Doors
Access solutions for cleanroom environments.
Cleanroom Windows
Observation and partition solutions for controlled environments.
Have a Specific Cleanroom Panel Requirement?
Tell us your application, panel dimensions, preferred core, joint configuration and estimated quantity. Our team can help review the available hand-made panel configuration for your project.
